Automatic nucleic acid purification system
Automatic nucleic acid purification system
$0.00

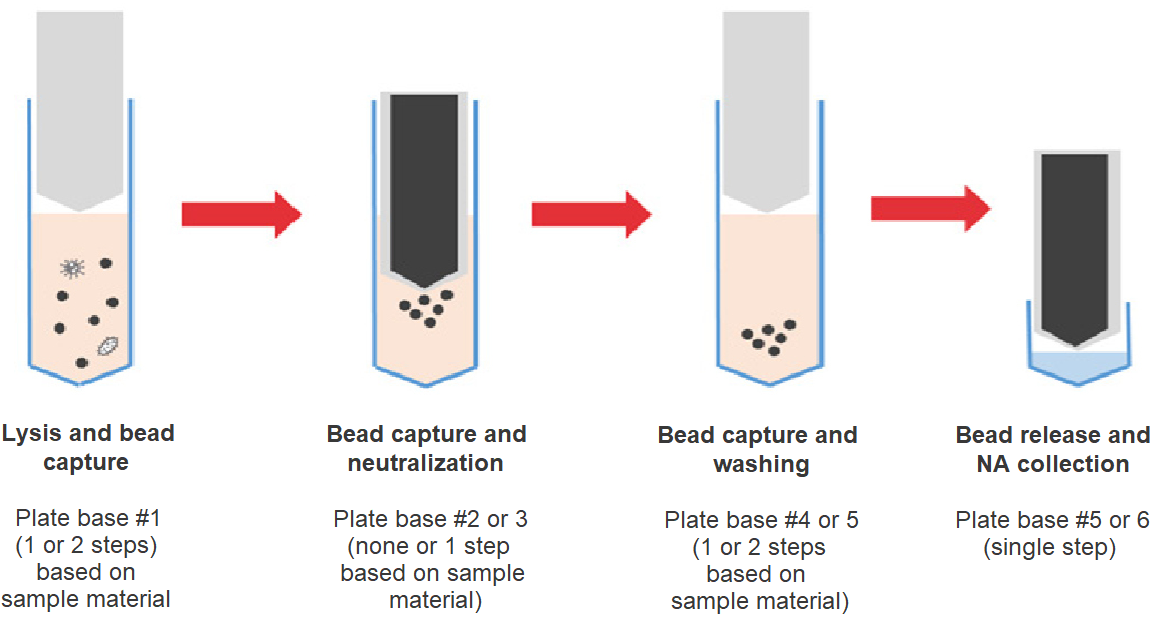

Ringene NYMA-96 is a fully automatic nucleic acid extraction system designed for purification of up to 96 samples by single run with standard 2.2 ml deep 96-well plate based on magnetic bead method. The system is an open platform able to work with similar 96-well plate reagents from different manufacturers (Sunshure, Bioneer, Biobase, Shanghai ZJ, Allsheng and more). Its open design allows users to input own protocols and optimization choices fit for nucleic acid purification kits from different manufacturers.
By its touchscreen interface and easy operation, parameters can be tuned based on experimental requirements easily in 5 minutes. Accurate temperature control system with 2 parallel sensors on board ensures proven heating temperature stability and control. Central rotary table allows workspace with smaller area compared to similar products. Plate loading, unloading and extraction process are fully automatic.
User can adjust the number of samples per run from 1 to 96 by inputting its parameters and adjusting its reagent consumption.
Ringene manufactures magnetic bead based kits for NYMA-96 and other open platforms of which protocols are well stabilized on over 20 different samples and materials.
Magnetic base, sensor and autosampler parts are of EU origin.
Protocol for magnetic bead based extraction kits from various manufacturers can be input into the system. Full installation, technical and application training and service package can be offered based on purchaser’s need.
|
Nucleic acid extraction method |
Positive charged magnetic beads |
|
Platform design |
Open (can apply any kits, reagents) |
|
Platform compatibility |
All types of magnetic bead based kits |
|
Automation design |
Single axletree style rotating autosampler, heating |
|
Number of samples per run |
1-96 |
|
Run time |
25-120 min (based on sample material) |
|
Processing volume |
50-1000 UL |
|
Plate loading |
96-deep-well plate and 96-well plate, 5 positions |
|
Plate heating |
Up to 120oC with 0.1oC unit |
|
Liquid loading and pumping efficiency |
>99% |
|
Nucleic acid collection efficiency |
>95% |
|
Internal sterilization |
UV light |
|
Air flow / exhaustion control |
Fan with 15 mm diam. HEPA filter |
|
Extension interface |
4 standard USB port, built-in SD card |
|
Operation |
7”, color touchscreen, English |
|
Program saving capacity |
Up to 140 programs / protocols |
|
Power supply |
450 W, 220-240 VAC or 110-120 VAC, 50-60 Hz |
|
Dimensions |
560 × 620 × 500 mm |
|
Weight |
56 kg |
Nucleic acid extraction kits and consumables

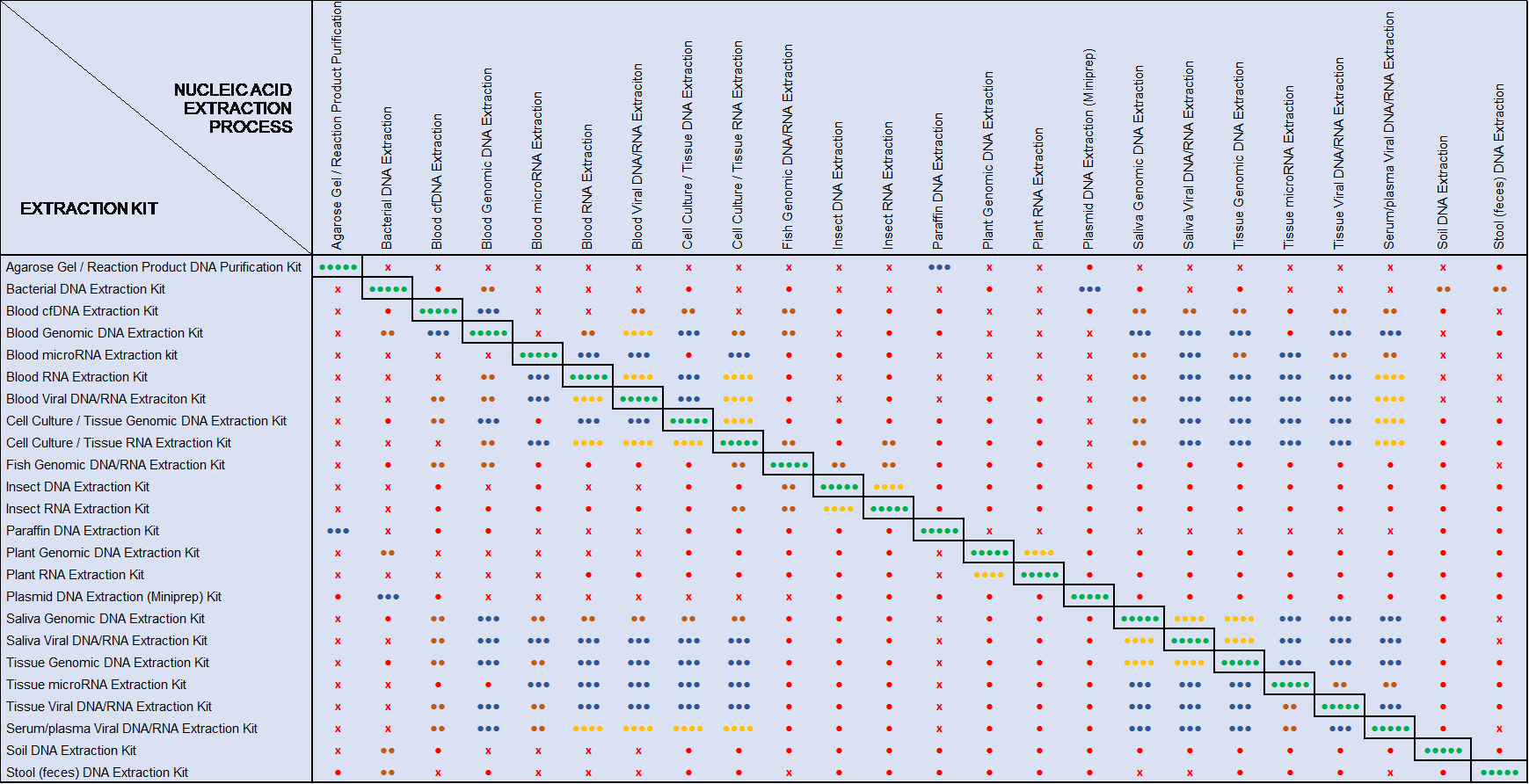

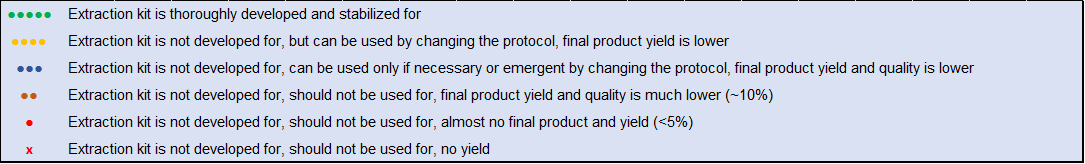

Ringene manufactures and supports magnetic bead based kits for the extraction of nucleic acid from over 20 different types of biological and environmental material. Customer can make a bulk order up to 50000 sample kits.
Consumables can be supplied separately by customer’s inquiry.
|
Product Number |
Consumables |
Unit amount |
|
MPUR002-001 |
Magnetic Tip Comb |
pack (10 pcs) |
|
MPUR003-001 |
96-Deep-Well Plate |
pack (10 pcs) |
|
MPUR004-001 |
96-Well Elution Plate |
pack (10 pcs) |
|
Kits, consumables |
Unit amount |
Product Number |
|
Blood Viral DNA/RNA Extraction Kit |
96 |
MPUR005-001 |
|
5 x 96 |
MPUR005-005 |
|
|
Blood RNA Extraction Kit |
96 |
MPUR006-001 |
|
5 x 96 |
MPUR006-005 |
|
|
Blood Genomic DNA Extraction Kit |
96 |
MPUR007-001 |
|
5 x 96 |
MPUR007-005 |
|
|
Blood microRNA Extraction kit |
96 |
MPUR008-001 |
|
5 x 96 |
MPUR008-005 |
|
|
Blood cfDNA Extraction Kit |
96 |
MPUR009-001 |
|
5 x 96 |
MPUR009-005 |
|
|
Cell Culture / Tissue RNA Extraction Kit |
96 |
MPUR010-001 |
|
5 x 96 |
MPUR010-005 |
|
|
Cell Culture / Tissue Genomic DNA Extraction Kit |
96 |
MPUR011-001 |
|
5 x 96 |
MPUR011-005 |
|
|
Serum/plasma Viral DNA/RNA Extraction Kit |
96 |
MPUR012-001 |
|
5 x 96 |
MPUR012-005 |
|
|
Saliva Viral DNA/RNA Extraction Kit |
96 |
MPUR013-001 |
|
5 x 96 |
MPUR013-005 |
|
|
Saliva Genomic DNA Extraction Kit |
96 |
MPUR014-001 |
|
5 x 96 |
MPUR014-005 |
|
|
Tissue Genomic DNA Extraction Kit |
96 |
MPUR015-001 |
|
5 x 96 |
MPUR015-005 |
|
|
Tissue Viral DNA/RNA Extraction Kit |
96 |
MPUR016-001 |
|
5 x 96 |
MPUR016-005 |
|
|
Tissue microRNA Extraction Kit |
96 |
MPUR017-001 |
|
5 x 96 |
MPUR017-005 |
|
|
Plasmid DNA Extraction (Miniprep) Kit |
96 |
MPUR018-001 |
|
5 x 96 |
MPUR018-005 |
|
|
Paraffin DNA Extraction Kit |
96 |
MPUR019-001 |
|
5 x 96 |
MPUR019-005 |
|
Kits |
Unit amount |
Product Number |
|
Agarose Gel / Reaction Product DNA Purification Kit |
96 |
MPUR020-001 |
|
5 x 96 |
MPUR020-005 |
|
|
Bacterial DNA Extraction Kit |
96 |
MPUR021-001 |
|
5 x 96 |
MPUR021-005 |
|
|
Plant Genomic DNA Extraction Kit |
96 |
MPUR022-001 |
|
5 x 96 |
MPUR022-005 |
|
|
Plant RNA Extraction Kit |
96 |
MPUR023-001 |
|
5 x 96 |
MPUR023-005 |
|
|
Fish Genomic DNA/RNA Extraction Kit |
96 |
MPUR024-001 |
|
5 x 96 |
MPUR024-005 |
|
|
Insect Genomic DNA Extraction Kit |
96 |
MPUR025-001 |
|
5 x 96 |
MPUR025-005 |
|
|
Insect RNA Extraction Kit |
96 |
MPUR026-001 |
|
5 x 96 |
MPUR026-005 |
|
|
Soil DNA Extraction Kit |
96 |
MPUR027-001 |
|
5 x 96 |
MPUR027-005 |
|
|
Stool (feces) Extraction Kit |
96 |
MPUR028-001 |
|
5 x 96 |
MPUR028-005 |
